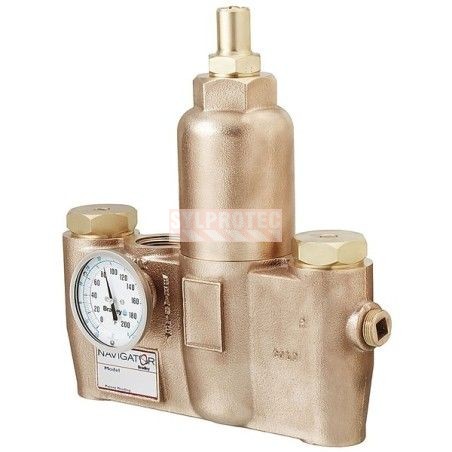

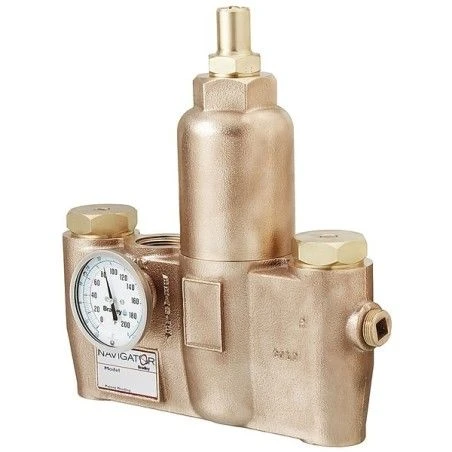

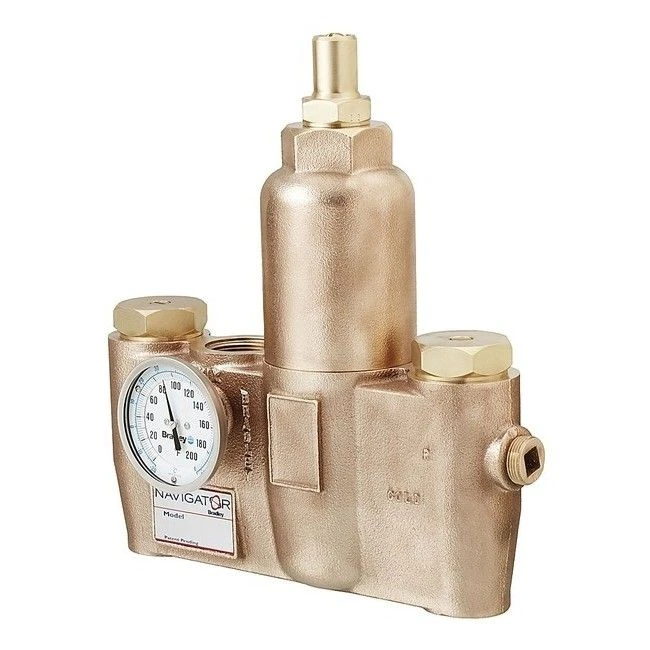

Thermostatic mixing valve, brass, 54 gpm (204 L/min) at 30 PSI, certified ANSI Z358.1-2009. For combination emergency showers.

Thermostatic mixing valve made of brass, allowing a flow of 54 US gallons/minute (GPM) at 30 pounds per square inch (PSI), corresponding to 204 liters/minute at 7 bars.

Certified ANSI Z358.1-2009, UPC, CPPC and CSA.

This thermostatic mixing valve is an essential device for controlling water temperature. It is sufficient for up to two combination emergency shower units (drench showers with eyelashes) or for several eyewash stations. Easy to install and to service.

• The water outlet temperature is preset at 29°C (85°F).
• The water outlet temperature may be adjusted from 18°C to 32° C (65°F to 90°F), with a precision of 1.7°C (3°F).
• The recommended temperature range for the hot water inlet is 49°C to 60°C (120°F to 140°F).
• The maximum allowed temperature for the hot water inlet is 82°C (180°F).
• The hot water inlet must always be at least 11°C (20°F) warmer than the outlet temperature of the valve.
• The recommended temperature range for the cold water inlet is 0.6°C to 26.7°C (33°F to 80°F).

This valve includes a liquid thermostat and has a single valve design. The valve will automatically block the hot water supply if the cold water supply is lost. A built-in cold water bypass system ensures cold water flow.

The thermostatic mixing valve is equipped with a dial thermometer with Celsius and Fahrenheit scales. The valve has a roughened brass finish, resistant to dirt and scale.

Brass Thermostatic Valve for Emergency Showers

The brass thermostatic valve is designed for combined emergency showers, ensuring efficient water temperature regulation with a flow rate of 54 gpm (204 L/min) at 30 PSI. Compliant with ANSI Z358.1-2009 standards, this valve provides a reliable and secure solution for industrial safety installations.

Peculiarities of:
The brass thermostatic valve is notable for its ability to maintain a constant water temperature, even during pressure fluctuations. This feature ensures maximum protection and safety for the user during emergencies.

Application:
To use the brass thermostatic valve, simply install it in the water supply line of the emergency shower. It will automatically regulate the water temperature based on preset settings, ensuring safe and efficient use during emergencies.

Maintenance and service life:
To maintain the brass thermostatic valve in good condition, it is important to clean it regularly and check for any signs of lime deposits or corrosion. If necessary, replace worn-out parts to ensure its proper functioning over the long term.

Suggestions:
Do you need additional safety equipment? Check out the following items: CDN Eye Wash Poster (ECU505-812), rigid plastic eye patches, 7.5 X 1.25 X 3.8 cm (PS511), sterile eye pads, 4.1 X 6.6 cm (PS514), Cederroth emergency eye wash solution (PD505-235), wall-mounted eye wash kit, 1 liter (PD520), wall mount for Cederroth eye wash solution (PD505S).

Under “Accessories” at the bottom of the page. If you're looking for work equipment, see the following products: Earplugs (OA101) and 3M N95 respirators (R8210).

Texts colored green correspond to hyperlinks leading to specific safety equipment or general information.
