Peakworks

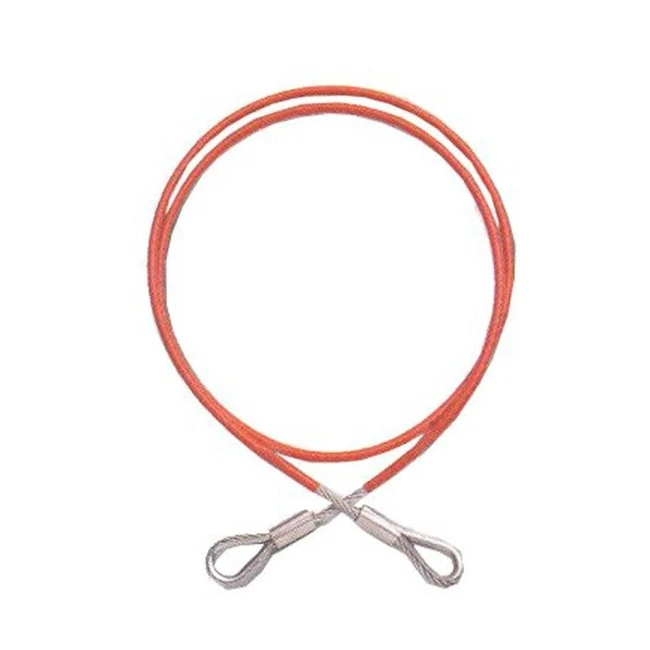

PVC coated galvanized steel cable sling for fall protection. Flexible anchorage connector with 2 swaged eyes
FPAE-4
$30.95
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
PVC coated galvanized steel cable sling for fall protection. It’s a flexible anchorage connector with swaged eyes at each end. Diameter: ¼ in (6 mm), 7 X 19.
Peakworks manufacturer's code: V8208004, model: AS-210004 for the 4' size.
This cable anchorage sling is available in various lengths ranging from four (4') or six (6'). Please select your size from the drop down menu above.
The FP02 is designed to withstand a tensile strength of 5000 lb (22 kN) which meets the standard ANSI Z359.1-2007, but also CSA Z259.12. The maximum load recommended by the manufacturer is 310 lb (140 kg).
Inspection:
The worker is responsible for visually inspecting his equipment before each use. During this routine inspection, the worker must note any signs of degradation, malfunction, or breakage. The anchor will have to be replaced if any such signs are detected.
On top of this routine inspection, the anchor must be inspected by a qualified person different than the worker. The frequency of these inspections varies according to the manufacturer. Some manufacturers require an inspection every 90 days, others every 180 days, or even yearly. These inspections should be performed more often if your equipment is used in extreme environmental working conditions. Any equipment that has withstood a fall or an impact must be scrapped.
These slings come with certification labels.
Suggestion:
To complete your fall protection you will find a range of harness, lanyards and self-retracting lanyards. Some products are suggested under the "accessories" tab at the bottom of this page.
Other equipment frequently used with this safety harness:
Safety glasses YA12E91001
Liberty TA14LR safety helmet and the essential TA14CS chin strap
EPTCONE28B Traffic Cones
Peakworks FPBAG storage bag
The FPL9901 Tool Strap
FPAE-4
Data sheet
- Type of product
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Anchorage & connectors
- Name of the product
- Sling
- Product code
- FPAE
- Approved/Certified
- Complies with CSA Z259.12 and ANSI Z359.1-2007 standards
- Manufacturer
- Peakworks
- Country of origin
- China
- Choice of format
- Length of 4 or 6 ft / 1.22 or 1.83 m
- Reusable
- Reusable with careful inspection and proper installation
- Features
- With two stamped end caps for fall protection
- Characteristic adding safety
- Designed to withstand static forces of 5000 lbs (22 KN)
- Worker’s weight
- 310 lb / 140 Kg maximum
- Material1
- Steel
- Material2
- Chlorinated polyvinyl (PVC)
- Washable
- Hand wash with warm water and soap
- Length (in/cm)
- 9 in / 22.8 cm
- Width (in/cm)
- 6.5 in / 16.51 cm
- Height (in/cm)
- 1 in / 2.54 cm
- Weight (lb/kg)
- 1 lb/ 0.45 Kg
- ***Size and weight according to selection***
- Based on the FPAE-6
- Sold by
- Unit
- Color
- Red/Grey
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
Specific References
- upc
- 626053551513
