Peakworks

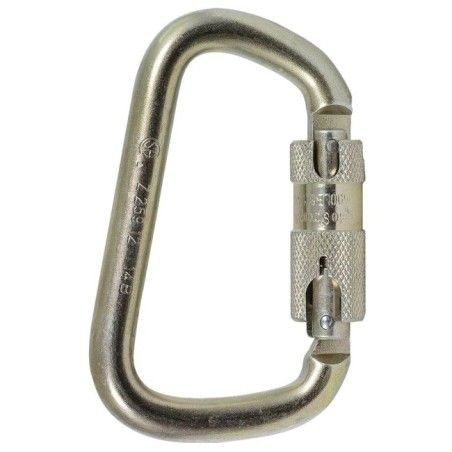

Semi-automatic self-locking D-lock carabiner, 1" opening, withstands a force of 7868 lb (30 kN)
FPAM88
$21.70
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Semi-automatic carabiner requiring a double action to unlock. This Peakworks steel offset D-shaped snap hook with a 1 in (25.4 mm) throat opening is made for the anchorage of fall protection equipment.
Dentec manufacturer's code: 16AD17443
It meets the CSA Z259.12 18C standard because it is capable of withstanding a force of 7868 lb (30 kN) without deforming. The rotary locking ring can withstand a force of 3600 lbs. This product also complies with ANSI Z359.12 standards.
Inspection:
The worker is responsible for visually inspecting the carabiner(s) before each use. During this routine inspection, the worker must note any signs of degradation, malfunction, or breakage. The carabiner will have to be replaced if any such signs are detected.
On top of this routine inspection, the carabiner must be inspected by a qualified person different than the worker. The frequency of these inspections varies according to the manufacturer. Some manufacturers require an inspection every 90 days, others every 180 days, or even yearly. These inspections should be performed more often if the carabiner is used in extreme environmental working conditions.
Sylprotec offers a fall protection equipment inspection service. Find out more by clicking on the Services tab, under the Sylprotec logo at the top of the page. Any equipment that has withstood a fall or an impact must be scrapped.
Maintenance:
For cleaning, use a gentle soap or detergent and lukewarm water (37°C). Do not use bleach, chlorine, or other abrasive or chemical products. Air dry without using heat in a clean environment. You may lubricate the door mechanism with powdered graphite when needed.
Suggestion:
To complete your fall protection you will find a range of harness, lanyards and self-retracting lanyards. Some products are suggested under the "accessories" tab at the bottom of this page.
Other equipment frequently used with this safety harness:
Safety glasses YA12E91001
Liberty TA14LR safety helmet and the essential TA14CS chin strap
EPTCONE28B Traffic Cones
Peakworks FPBAG storage bag
The FPL9901 Tool Strap
FPAM88
Data sheet
- Type of product
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Anchorage & connectors
- Name of the product
- Self-locking semi-automatic carabiner
- Product code
- FPAM88
- Approved/Certified
- Complies with CSA Z259.12-18C and ANSI Z359.12 standards
- Manufacturer
- Peakworks
- Country of origin
- China
- Reusable
- Reusable with careful inspection and proper installation
- Features
- 1" (25.4 mm) opening
- Additional Features
- Requires a double action to unlock and locks automatically
- Characteristic adding safety
- It can withstand a force of 10125 lb (45 kN) without deforming. The rotary locking ring can withstand a force of 3600 lbs
- Form
- Asymmetrical «D»
- Material
- Steel
- Washable
- Hand wash with warm water and soap
- Length (in/cm)
- 5 in / 12.7 cm
- Width (in/cm)
- 3.5 in / 8.89 cm
- Height (in/cm)
- 0.5 in / 1.27 cm
- Weight (lb/kg)
- 0.6 lb / 0.27 Kg
- Sold by
- Unit
- Color
- Silver
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
