3M

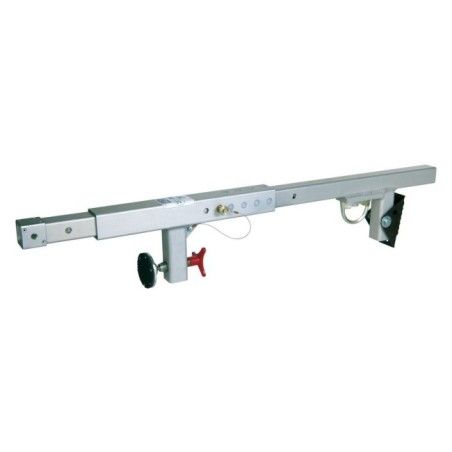

Removable anchoring device for installation in a door or window frame, 310 lb max
FPA831
$1,094.90
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Adjustable temporary anchor for doors and windows 21 1/2" to 51 1/2" wide. (54.6 cm to 130.8 cm). Withstands a static force of 5000 lb (22KN). The maximum weight of the worker who can use this anchor is 310 lb (140 kg), including clothing, tools, etc.
DBI Sala manufacturer code: 2100080, 3M number: 70007439592.
Meets the requirements of ANSI Z359.18 TYPE A and OSHA 1910.140.
This anchor installs in a door or window frame allowing the user to install an anchor connector quickly without having to damage anything. In addition, this anchor is lightweight, portable and does not require any tools for installation.
Anchor: Aluminum and zinc plated steel
D-ring: Carbon steel with galvanized finish
Capacity: 310 lb (140 kg)
Weight: 14 lb (6.3 kg)
Anchor length: 56.36 "
Anchor width: 7.12 "
Operating temperature: -40 F to 140 F (-40 C to + 60 C)
Equipped with an Isafe tag for tracking inspections.
Inspection:
The worker is responsible for performing a routine inspection before each use. During this routine inspection, the worker should observe any signs of degradation, wear, malfunction or breakage. You must replace your removable beam anchor at the first sign of failure mentioned above.
In addition, the removable beam anchor should be inspected by a qualified person other than the worker using the equipment. Keep in mind that the more difficult the work and environmental conditions, the more often you should inspect the removable anchor.
Sylprotec offers an inspection service for fall arrest equipment. You can find out more by visiting the Service tab under the Sylprotec logo at the top of the page.
Any equipment subject to a fall or impact must be taken out of service.
Caution: Must be installed at the bottom of the door or window opening.
Suggestion:
To complete your fall protection you will find a range of harness, lanyards and self-retracting lanyards. Some products are suggested under the "accessories" tab at the bottom of this page.
Other equipment frequently used with this safety harness:
Safety glasses YA12E91001
Liberty TA14LR safety helmet and the essential TA14CS chin strap
EPTCONE28B Traffic Cones
Peakworks FPBAG storage bag
The FPL9901 Tool Strap
FPA831
Data sheet
- Type of product
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Anchorage & connectors
- Name of the product
- Removable anchoring device
- Product code
- FPA831
- Approved/Certified
- Meets the requirements of: ANSI Z359.18 TYPE A and OSHA 1910.140
- Manufacturer
- 3M
- Country of origin
- United State of America
- Reusable
- Reusable with careful inspection and proper installation
- Recommended use temperature
- Operating temperature -40°F to 140°F /-40°C to 60°C
- Features
- For door and window widths from 21 ½" to 51 ½ / 54.6 cm to 130.8 cm
- Characteristic adding safety
- Minimum breaking strength: 3,600 lb
- Comfort features
- Lightweight and portable and easy to install by one person
- Includes
- With D-ring
- Worker’s weight
- 310 lb / 140 Kg maximum
- Material1
- Galvanized steel
- Material2
- Aluminum
- Washable
- Hand wash with warm water and soap
- Length (in/cm)
- 22 in / 55.88 cm
- Width (in/cm)
- 8.5 in / 21.6 cm
- Height (in/cm)
- 3.25 in / 8.25 cm
- Weight (lb/kg)
- 7.6 lb / 3.5 Kg
- Sold by
- Unit
- Color
- Grey/Black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight supported is 310 lb / 141 kg, which includes the weight of tools and any other equipment carried by the worker
