Allegro
Assembly designed to maintain airflow at the entrance of a manhole, 8 or 12" diameter duct, 6 or 15 feet long
RA9510-86
$531.55
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

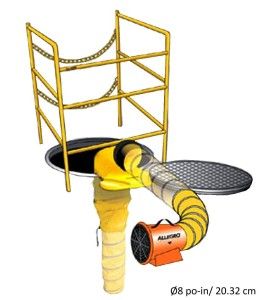

Kit designed to maintain airflow at the entrance of a manhole. This product is available in 8" or 12" diameter. It is also available in two lengths of duct: 6' / 1.83 m and 15' / 4.57 m.
Allegro Industries manufacturer's code: 9550-10, 9510-55, 9510-60, 9510-65.
This model is available in a variety of diameters and lengths. Please select your size from the menu above.
This device allows distributing and maintain an adequate air flow while allowing easy access to the workers with the minimum of obstruction. The liner is collapsible and reshapes itself once the worker has descended into the manhole.

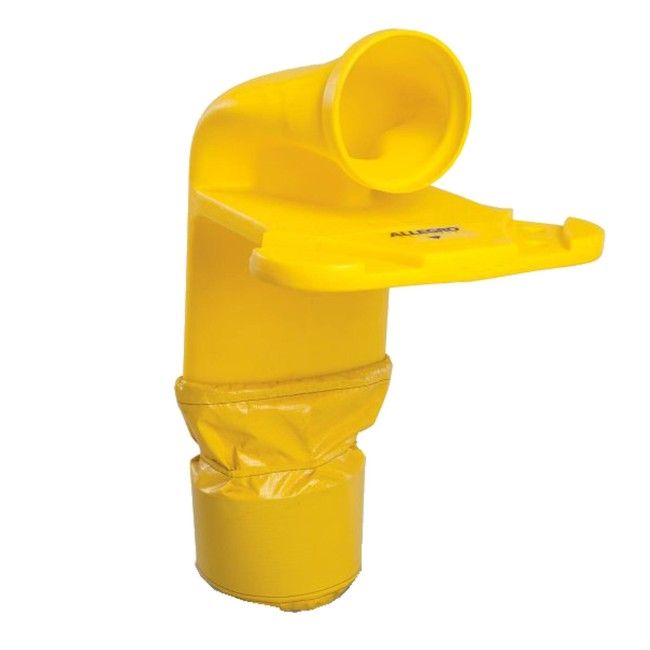

The MVP (Manhole Ventilation Passthru) is the first manhole system that combines a low-profile air vent, 90° elbow and integrated mounting plate into one system. The low-profile elbow installs under the bottom crossbar of the guardrail (EPTBB). Manhole cover fits into the flat fluted corners to stabilize it
The ducting is stored in a small storage bag built into the product. A quick release drawstring allows the conduit to be released from the manhole. Once the work is completed, it is easily stored.
This innovative product was developed by Allegro Industries and is protected by U.S. Patent D673.668.
Characteristics of the deflector:
- Made of linear low-density polyethylene (LLDPE)
- This part is fully recyclable if needed.
- High visibility yellow colour.
Duct Characteristics:
- Made of polyester and vinyl coated with chlorinated polyvinyl chloride (PVC)
- Conduit is compressible and has steel reinforcement around the edge
- Material withstands temperatures up to 180˚F / 88.2˚C
- Meets the specifications of ASTM 227
- Meets the specifications of the UL 94V-0 flame resistance standard
Other equipment frequently used with this device:
-
Confined Space Harness (FPH2000APLE)
- Harness storage bag (FPBAG)
- Tool attachment strap (FPL9900)
- Tripod, Lifeline and Winch Kit (FPLRK3)
- Manhole Barrier (EPTBB)
RA9510-86
Data sheet
- Type of product
- Safety equipment
- Main category
- Industrial accessories
- Sub category
- Asbestos decontamination
- Name of the product
- Venting assembly for a manhole
- Series of products
- COM-PAZ-IAL PLASTIC BLOWERS
- Product code
- RA9510
- Product use
- Fans and accessories for confined spaces
- Approved/Certified
- Meets ASTM 227 specifications and meets UL 94V-0 flame resistance specifications
- Manufacturer
- Allegro industries
- Country of origin
- United State of America
- Diameter of the opening
- Choice of 8 in / 20.32 cm or 12 in / 30.4 cm
- Reusable
- Reusable with careful inspection and proper installation
- Recommended use temperature
- Withstands temperatures up to 180°F / 88.2°C
- Features
- Kit designed to maintain airflow at the entrance of a manhole. This product is available in 8" or 12" diameter. It is also available in two lengths of duct: 6' / 1.83 m and 15' / 4.57 m
- Additional Features
- This device distributes and maintains adequate airflow while allowing easy access to workers with minimal clutter. The duct is collapsible and reshapes itself once the worker has descended
- Characteristic adding safety
- The low profile elbow fits under the bottom crossbar of the guardrail (EPBBT). Manhole cover fits into flat fluted corners to stabilize it
- Includes
- The MVP (Manhole Ventilation Passthru) combines a low profile air vent, a 90° elbow and an integrated mounting plate into one system
- Includes 2
- The conduit is stored in a small storage bag built into the product. A quick-release drawstring allows the conduit to be released into the manhole
- Type of ventilation duct
- Class 1 steel reinforced compressible conduit for toxic environments
- Ventilation duct material
- Made of one ply material, vinyl and polyester coated with PVC
- Inside diameter of the duct
- Depending on product selection: 8 in / 20.32 cm or 12 in / 30.48 cm
- Thermal resistance of the duct
- Withstands temperatures up to 180°F / 88.2°C
- Length of the duct
- Depending on product selection: 6 or 15 ft / 1.83 or 4.57m
- Duct compliance
- Meets ASTM 227 and UL-94 V0 flammability standards
- Material1
- Linear low density polyethylene (LLDPE)
- Material2
- Polyester and vinyl
- Material3
- Chlorinated Polyvinyl Coating (PVC)
- Length (in/cm)
- 26 in / 66.04 cm
- Width (in/cm)
- 41 in / 104.14 cm
- Height (in/cm)
- 23 in / 58.42 cm
- Weight (lb/kg)
- 15 lb / 6.80 Kg
- ***Size and weight according to selection***
- Based on the RA9510-1215
- Sold by
- Unit
- Color
- Yellow/Black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
