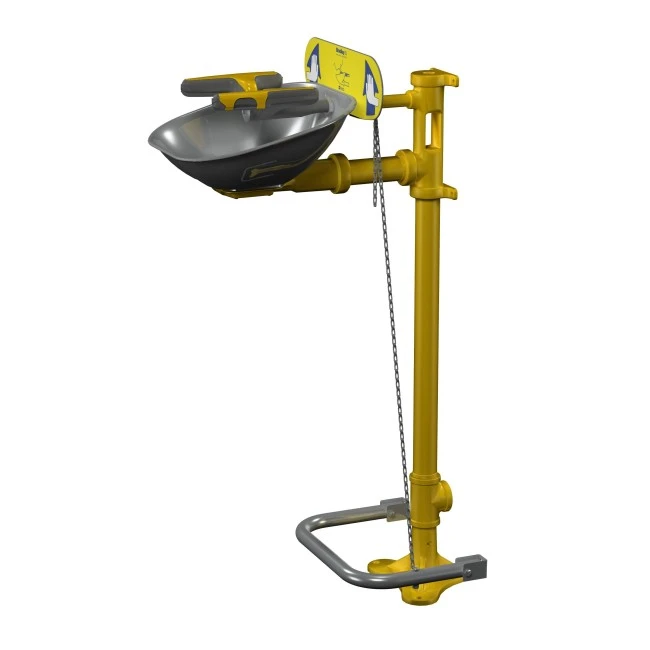

Bradley pedestal Halo eye/face wash with pedal and stainless steel bowl, certified ANSI Z358.1-2009.
search
  • Bradley pedestal Halo eye/face wash with pedal and stainless steel bowl, certified ANSI Z358.1-2009.
Bradley

Bradley pedestal Halo eye/face wash with pedal and stainless steel bowl, certified ANSI Z358.1-2009.

PD19214YF
$889.25
Quantity

Return conditions:

No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

Bradley pedestal Halo eye/face wash station (S19224YF). Pedal-activated, with a stainless steel bowl.

Certified ANSI Z358.1-2009. Minimum flow exceeds 3.0 gpm (11.4 L/min). It does not include a device for controlling water temperature.

Ideal for laboratories, medical facilities, industries, workshops, garages, airports, food processing plants, paper mills, and any other places where workers risk being exposed to dust, particulates or dangerous materials.

This eye/face wash station is mounted on the floor and does not need to be placed close to walls. Its single-step activation simply requires either a push on the large handle or, if hands may not be used, a step on the pedal. Once activated, the wash station will stay on until manually turned off. The spray heads have a unique elongated design with multiple water jets that cover more area than traditional face wash spray heads and facilitate face rinsing. This eye/face wash station is also barrier-free, for use by people in wheelchairs.

The wash station has separate pipes for water intake and drain, and ensures a safe, steady flow of water, even if the water supply pressure varies between 30 and 90 PSI. The bowl is made of heavy-duty stainless steel. The spray heads are equipped with strainers to filter water particulates, and with antimicrobial protection. Yellow and gray plastic covers protect the spray heads from dust. Pipes are made of galvanized steel protected by a yellow Bradtec covering.

The kit includes:

  • Parts necessary for the installation of the wash station and the connection to a water supply (some parts are not supplied, see instructions).
  • 1 universal safety sign to indicate the location of the emergency wash station
  • 1 inspection tag
  • 1 trilingual instruction booklet (English, French, Spanish). PDF version is also available, see below.

The manufacturer recommends the installation of a thermostatic valve in order to comply with ANSI Z358.1-2009 standards. A thermostatic valve keeps rinsing water at a lukewarm temperature. Rinsing water should not be too cold (for more comfort while rinsing for the minimum required rinsing time of 15 minutes) nor too hot (to avoid aggravating eye or face injuries and to avoid scalding).

Choose the Bradley Halo pedestal eyewash and face wash station with a pedal, featuring a stainless steel bowl approved by ANSI Z358.1-2009 standards.

Designed to provide quick and efficient decontamination, this rinsing station ensures maximum safety in the workplace. The pedal system allows for easy and hygienic activation, ensuring immediate responsiveness in case of emergency.

The stainless steel bowl guarantees exceptional durability, making this station a reliable investment to protect your employees.

Peculiarities of:
The Bradley Halo eyewash and face wash station with pedals stands out for its convenient activation system, allowing hands-free operation for enhanced hygiene and safety. The foot mechanism ensures quick and intuitive activation in emergency situations, providing a reliable solution to protect workers from hazardous substances.

Application:
To use the Bradley Halo eyewash and face wash station with a pedal, start by pressing the pedal to activate the water flow. Then, position your eyes and face over the stainless steel bowl to ensure the water covers the affected areas. Maintain this position for at least 15 minutes to ensure thorough decontamination.

Maintenance and service life:
To store the Bradley Halo eyewash and face wash station with a pedal, ensure it is placed in a clean and dry environment. Protect the stainless steel bowl from exposure to corrosive substances or excessive humidity to maintain its durability and effectiveness.

Suggestions:
Do you need additional safety equipment? Check out the following items: CDN Eye Wash Poster (ECU505-812), rigid plastic eye patches, 7.5 X 1.25 X 3.8 cm (PS511), sterile eye pads, 4.1 X 6.6 cm (PS514), Cederroth emergency eye wash solution (PD505-235), wall-mounted eye wash kit, 1 liter (PD520), wall mount for Cederroth eye wash solution (PD505S).

Under “Accessories” at the bottom of the page. If you're looking for work equipment, see the following products: Earplugs (OA101) and 3M N95 respirators (R8210).

Texts colored green correspond to hyperlinks leading to specific safety equipment or general information.

PD19214YF

Data sheet

Type of product
Safety equipment
Main category
First aid and emergency showers
Sub category
Emergency showers
Sub sub category
Eyewash & face wash stations
Name of the product
Bradley pedestal Halo eye wash
Product code
PD19214YF
Sort by keywords
Pedestal eyewash station
ANSI Requirements
Compliance ANSI Z358.1-2009
Manufacturer
Bradley
Features
This device does not include a thermostatic valve, therefore there is no automated water temperature control
Additional Features
The heads are equipped with filters to retain water particles and antimicrobial protection
Comfort features
The unique design of the heads, with multiple water jets, covers a wider area than traditional face shower models, making it easier to wash the face
Includes
Parts necessary for the installation of the eyewash station and the connection to a water supply (some parts are not supplied, see instructions)
Type of emergency
Eye/Face Wash
Installation specifications
This eyewash station attaches to the floor, so it doesn't need to be placed near the walls
Activation type
It is activated in one movement by pressing either the large lever or the foot pedal to keep your hands free. In addition, this eye and face shower can be used by people in wheelchairs.
Operating flow rate
Allows a minimum flow of 3 GPM (11.4 L/min) at 30 PSI
Material1
The bowl is made of strong and resistant stainless steel. The piping is made of galvanized steel protected by the yellow Bradtect coating
Material2
Yellow and grey plastic lids
Length (in/cm)
36 in / 91.44 cm
Width (in/cm)
18 in / 45.72 cm
Height (in/cm)
18 in / 45.72 cm
Weight (lb/kg)
15 lb / 6.80 Kg
Sold by
Unit
Return conditions
No returnable
New
