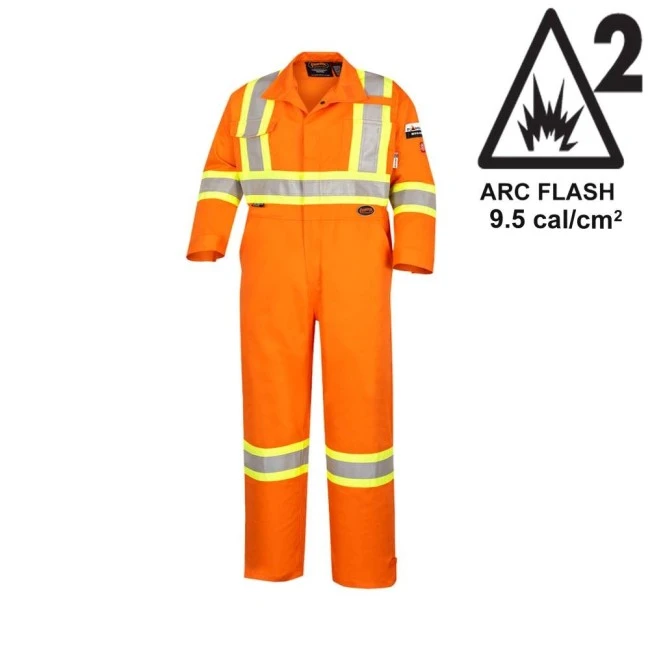

100% flame-resistant orange safety coverall, ARC 2, with high-visibility reflective stripes
V1765-36
$181.45
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
100% flame-resistant orange safety coverall for protection against flames and electric arc flash, with high-visibility reflective stripes. Made of 10 oz (340 GSM) FR cotton.
Pioneer manufacturer code: V2520250, model 5555.
Available sizes: 36 to 66. Please select your size from the drop-down menu above.
Compliance information:
- Compliant with CGSB 155.20-2000 Workwear for Protection Against Hydrocarbon Flash Fire Standard.
- Compliant with NFPA 70E Standard for Electrical Safety in the Workplace and CSA Z462-15 Workplace Electrical Safety Standard.
- The coverall is compliant to Hazard Risk Category (HRC) 2. - Compliant with ASTM F1506-10A Standard Performance Specification for Flame Resistant and Arc Rated Textile Materials for Wearing Apparel for Use by Electrical Workers.
- The fabric has an Arc Thermal Performance Value (ATPV) of 9.5 calories/cm2. - Meets the CSA Z96-09 High Visibility Safety Apparel Standard.
- The coverall is compliant with requirements for class 1 level 2 and class 1 level FR. - Thermal Protective Performance (TPP) value: 11.8 for test with spacer, 8.2 for test with contact.
About APTV and TPP values:
We have observed differences between the values given in the manufacturer's data sheets for APTV and TPP. These values may vary according to the different standards considered. These values are subject to change according to the evolution of tests established according to the reference year of the said standard. The values displayed on our website correspond to those indicated on the garments.

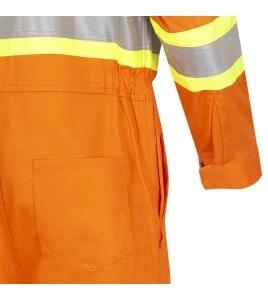

This safety coverall is made of FR treated cotton and sewn with inherently FR thread. The action back has pleats for more comfort when stretching and reaching. The waistband has an elastic band for better comfort. The coverall has a front hidden two-way non-locking zipper, made of FR brass. Wrist and ankle openings are adjustable with snap buttons. The coverall has two pass-through openings on the sides.

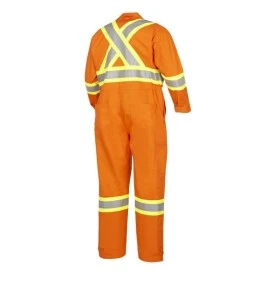

The coverall features retroreflective silver (gray) stripes with fluorescent yellow borders, to ensure high visibility in most work environments. Retroreflective stripes are made of StarTech, a FR reflective material. The coverall has two vertical stripes at the front, two X-shaped stripes at the back, a horizontal stripe around the waist, a stripe around each forearm and a stripe around each leg.

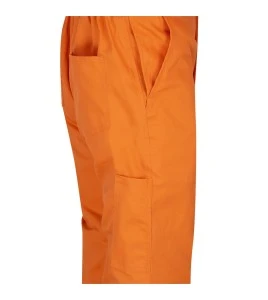

This coverall has 7 pockets:
- 2 chest pockets;
- 2 slit side pockets;
- 2 back pockets;
- 1 tool pocket;
- 1 clip strap at chest height.
High visibility color information:
Fluorescent orange (neon orange) is highly visible during daylight and in conditions with abundant artificial light. In most situations, it offers a high contrast with the background. However, fluorescent orange is less visible at night and during low light conditions, for instance at dawn or dusk.
Gray (silver) retroreflective stripes are highly visible in low natural or artificial light conditions, because they reflect beams of light (flashlight, vehicle headlights, etc.) back towards their source. They are most efficient during dawn, dusk or at night. However, they do not offer increased visibility during daylight.
Care and durability:
Before washing, be sure to empty all garment pockets and close all zippers, snaps and hook-and-loop fasteners. Turn garments inside out. Do not soak. Do not overload the washer and rinse stubborn stains before washing. Wash in lukewarm water with similar colors and does not exceed (104oF or 40oC). Wash heavily soiled garments separately. Use a mild liquid detergent (PH of 10 or less).
Do not use detergents containing bleach or animal fat, or bleach-containing chlorine (sodium hypochlorite) or hydrogen peroxide in the wash cycle. Do not use fabric softener, as it renders garments flammable. Do not use fabric softeners, starch and/or fabric softener sheets. Garments can be ironed, tumble-dried, tunnel-dried or hung in a cool place. Cover retroreflective tape before ironing. Drying temperature should not exceed 149oF or 65oC. Use the "cotton" setting for drying. Do not over-dry. Do not use starch during drying.
V1765-36
Data sheet
- Type of product
- Safety equipment
- Main category
- Personal protection
- Sub category
- Safety clothing
- Sub sub category
- Pants, shirt, coverall
- Name of the product
- Coveralls with reflective strips
- Series of products
- Flame-Gard®
- Product code
- V1765
- Approved/Certified
- Complies with CGSB 155.20-2000, NFPA 70E, CSA Z462-15, ASTM F1506-10A, CSA Z96-15
- Manufacturer
- Pioneer®
- Country of origin
- Unknown origin
- Thermal protection
- TPP value:11.8 cal/cm² ARC ATPV 9.5 cal/cm² CAT2
- About APTV and TPP values-1
- We have observed differences between the values given in the manufacturer's data sheets for APTV and TPP. These values may vary according to the different standards considered
- About APTV and TPP values-2
- These values are subject to change according to the evolution of tests established according to the reference year of the said standard. The values displayed on our website correspond to those indicated on the garments
- Type of seam
- Double stitching with aramid thread (flame retardant)
- Fineness of the knitting
- Flame Gard® 10 oz (340 gsm) fire-retardant cotton
- Choice of format
- Available sizes: 36 to 66
- Reusable
- Reusable with prior hygienic measurement
- Gender
- Male
- Features
- With high visibility reflective stripes (2 vertical lines on chest, "X" on back, stripes around waist, arms and legs)
- Additional Features
- This suit has 7 pockets (2 chest pockets, 2 side slash pockets, 2 back pockets, 1 tool pocket) and 1 chest strap for attaching radio
- Comfort features
- Front closure with concealed two-way zipper. Elastic waistband for added comfort
- Features on zips, buttons and hook-and-loop fasteners
- Flame-retardant brass zipper
- Precision on the color of the material and their visibilities
- Fluorescent orange is very visible during the day and in conditions with a lot of artificial light. In most situations, it also provides high contrast with the background
- Includes
- The wrist openings are adjustable with snaps, while the ankle openings have no fasteners. The suit has two side openings for pants
- Includes 2
- An elastic band at the waist allows more comfort
- Property of the material
- Fire retardant
- Classification
- Class 3, Level FR
- Fireproof material
- Fire retardant fabric
- Material1
- 100% fire retardant treated cotton
- Material2
- The reflective strips are made of StarTech®
- Washable
- Wash in lukewarm water with similar colors and do not exceed (104⁰F or 40⁰C). Wash Use a mild liquid detergent (PH of 10 and below). Do not use detergents containing bleach or animal fat
- Washable2
- Do not use bleaches containing chlorine (sodium hypochlorite) or hydrogen peroxide in the wash cycle. Do not use fabric softeners, as they render garments flammable
- Drying
- Do not use fabric softeners, starch and/or fabric softener sheets. Garments can be iron-pressed, tumble-dried, tunnel-dried or hung in a cool place
- Drying2
- Cover retroreflective tape before ironing. As far as the drying temperature is concerned, it should not exceed 149⁰F or 65⁰C. Use the "cotton" setting for drying. Do not over-dry. Do not use starch during drying
- Before/after washing tips
- Before washing, be sure to empty all garment pockets and close all zippers, snaps and hook-and-loop fasteners. After washing, shake the garment to remove wrinkles and hang to dry in a cool, well-ventilated place
- Dimensions of the product
- The dimensions of the product depend on the size selected by the customer.
- Length (in/cm)
- 16 in / 40.6 cm
- Width (in/cm)
- 12 in / 30.48 cm
- Height (in/cm)
- 3 in / 7.6 cm
- Weight (lb/kg)
- 5 lb / 2.26 Kg
- Availability
- Please note: Available only on special order. No exchange or refund. Allow 3 to 5 business days for delivery
- Sold by
- Unit
- Color
- Orange/Grey/Yellow
- Return conditions
- No returnable
Specific References
- upc
- 626053527495
