Reed Instrument

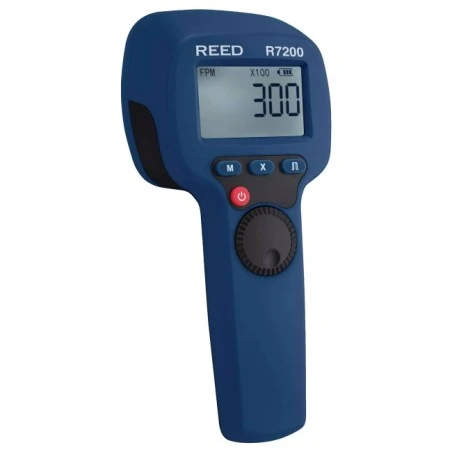

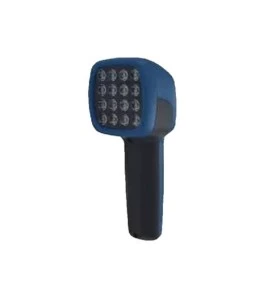

Stroboscope, freezes the motion and measures the speed of a rotating object, without contact
R7200
$297.20
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
The R7200 features flash rate speeds from 60 to 99999 FPM/RPM, 16 bright LED's and a bright LED display.
Features:
- Bright LED's with uniform light output
- High accuracy of ±0.001%
- Rechargeable li-ion battery
- Extended battery life of 8 hours continuous use at 6,000 fpm/rpm
- Internal phase shifting allows target to be moved in increments
- Flash rate may be displayeed in Flashes per Minute (FPM) or Flashes per Second (Hz)
- Multiplier (1x/10x/100x) push button allows for quick verification of actual RPM
- Easy to ready LCD display
- Low battery indicator
R7200
Data sheet
- Type of product
- Safety equipment
- Main category
- Industrial accessories
- Sub category
- Precision instruments by reed
- Sub sub category
- Industriel maintenance
- Name of the product
- Contactless stroboscope
- Series of products
- Reed®
- Product code
- R7200
- Sort by keywords
- Industrial monitors
- Product use
- Measures the speed of a rotating object, in RPM (rotation per minute) or HZ; (rotation per second), without contact
- Approved/Certified
- Meets CE
- Manufacturer
- Reed Instruments
- Storage temperature
- -4º F to 140 º F / -20°C to 60°C
- Humidity % of operation
- 10 to 90%
- Maximum working altitude
- 6561 ft / 2000 m above sea level
- Internal dephasing
- With internal phase shift
- Type of display
- 5-digit LCD display
- Light source
- 16-lamp LED array
- Low battery indicator
- Low battery indicator
- Comfort features
- Tripod mount for stationary use
- Measurement functions
- Measures the speed of a rotating object, without contact.
- Includes
- Digital Stroboscope, Light Bulb and Power Cord
- Battery type
- 7.4 V 2 A/Hr rechargeable lithium-ion battery
- Battery life
- 8 hours
- Operating temperature
- 14° F to 131° F / -10°C to 55°C
- Voltage of the battery
- 7.4 Volt DC
- Current of the battery
- 2 amps per hour
- Length (in/cm)
- 8.25 in / 20.95 cm
- Width (in/cm)
- 3.5 in / 8.89 cm
- Height (in/cm)
- 2.25 in / 5.71 cm
- Weight (lb/kg)
- 0.7 lb / 0.3 Kg
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
