Reed Instrument
Environmental Meter and Data Logger
R4700SD
$361.70
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

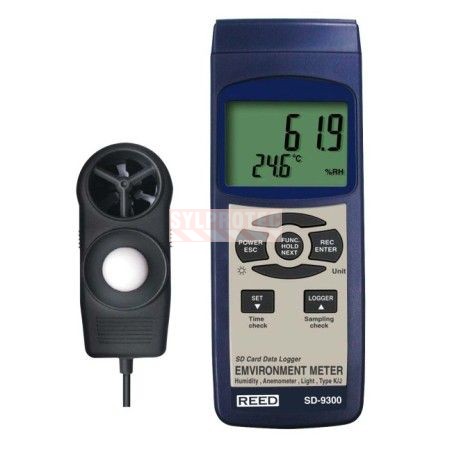

Environmental Meter and Data Logger.
Features:
- Measures air velocity/temperature, ambient temperature, relative humidity, light, and contact temperature
- Measures sound level (dB) with R4700SD (sold seperately)
- Air velocity is measured in m/s, ft/min, km/h, mph or knots
- Light levels are measured in foot-candles or lux
- Temperature is measured in °C or °F
- Data hold and Max/Min functions
- Real-time datalogger with integral SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Optional PC software features live tracking via USB connection
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
Specifications:
Air Velocity Range: 0.4 to 30.0 m/s; 1.4 to 126.0 km/h; 0.9 to 78.3 mph; 79 to 6890 fpm; 0.8 to 68.0 knots.
Humidity Range: 0% to 95% RH.
Light Range: 0 to 20,000 Lux (0 to 1,860 Ft-cd).
Type K Temp. Range: -100.0 to 1300.0°C (-148.0 to 2372°F).
Type J Temp. Range: -100.0 to 1200.0°C (-148.0 to 2192°F).
Sampling Time: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds
Accessories available to complete your purchase:
(R4700SDSOUND): Sound Level Adapter.
(TP01): Type K Thermocouple Wire Probe.
(SD4GB): 4GB SD Memory Card.
(USB01): USB Cable.
(SWU801WIN): Data Acquisition Software.
(R1500): Tripod.
R4700SD
Data sheet
- Type of product
- Safety equipment
- Main category
- Industrial accessories
- Sub category
- Precision instruments by reed
- Sub sub category
- Health and safety
- Product code
- SD9300
- Sort by keywords
- Environmental meters
- Approved/Certified
- Meets CE
- Manufacturer
- Reed Instruments
- Features
- Using a SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file on a SD card without the use of software
- Additional Features
- Optional PC software features live tracking via USB connection
- Measurement functions
- This 7-in-1 environmental meter measures air velocity, air temperature, ambient temperature, relative humidity, light and contact temperature measurements. The SD9300 is also capable of sound level measurements with the SL417 adapter (optional)
- Includes
- Environmental Datalogger, Multi-function Probe, Hard Carrying Case and Batteries
- Power supply requirements
- 6 x AA Batteries or AC Adapter (optional)
- Length (in/cm)
- 11.25 in / 28.57 cm
- Width (in/cm)
- 10 in / 25.4 cm
- Height (in/cm)
- 3 in / 7.6 cm
- Weight (lb/kg)
- 2.5 lb / 1.13 Kg
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- Tripod not included. SD memory card (optional)
