Multigas (O₂, CO, H₂S + explosive gas) detector complete kit for detection of hazardous gases or gas leaks in confined space.

MSA Altair 4XR bluetooth  multigas detector kit for the detection of hazardous gases in confined space. This device can detect explosive gases, oxygen (O₂), carbon monoxide (CO) and hydrogen sulfide (H₂S). Ideal for work in confined spaces and detection of toxic or explosive gas leakages.

Manufacturer code: 10178357

This item is only available as a special order. Please allow a lead time of 2 to 3 weeks.

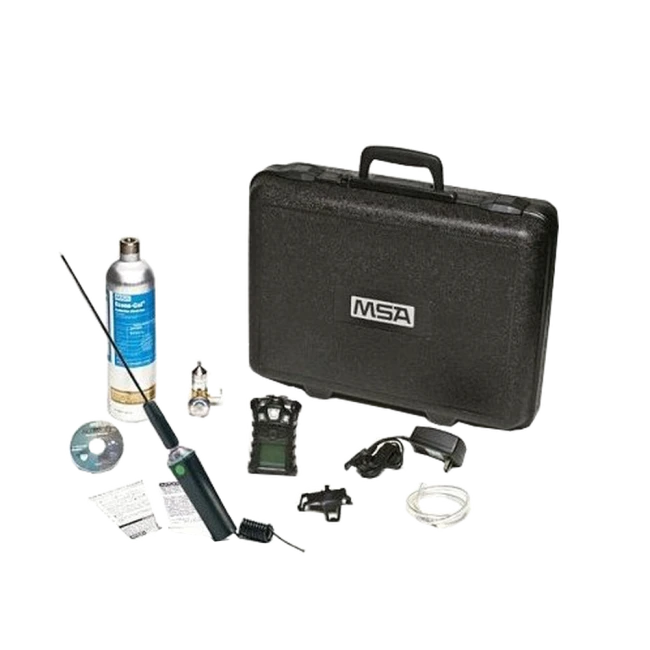

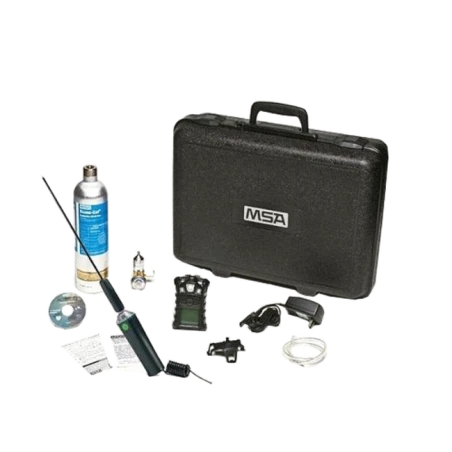

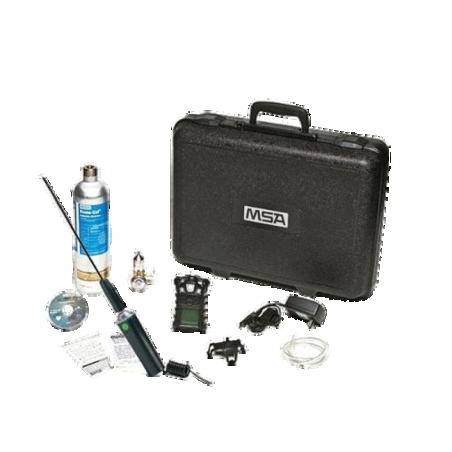

The kit includes:

• 1 MSA Altair 4X multigas detector (model 10107602) with charger
• 1 universal pump probe (model 10046528)
• 1 calibration gas cylinder, 34 L (model 10048280)
• 1 regulator and tubing (model 467895)
• 1 black plastic carrying case, 51 cm x 38 cm x 15 cm (20” x 15” x 6”)

This type of tool is usually used for work in confined spaces and for the detection of explosive or hazardous gas leaks. This device is class 482801 and class 482881 CSA approved by Canadian and American standards.

This detector is use for hazardous locations as defined by CSA Class I, Div. 1, Groups A, B, C & D.

It is also meets CSA C22.2 NO. 152 concerning combustible gas detection instruments.

It is certified ANSI 12.13.01-2000 as for its performance requirements for combustible gas detectors.

This multigas detector is equipped with MSA XCell sensors with a lifetime of more than 4 years. It features a response time and return to zero time of less than 15 seconds. It features three (3) different alarms: sound (with a volume up to 95 dB), visual (with 4 LED) and vibration. It also features a backlit LCD screen.

Sturdy, lightweight and dust- and waterproof, this detector can save up to the last 500 readings of the event log. It includes the free MSA Link software to retrieve recorded data.

This detector is equipped with a lithium-ion polymer battery with a lifetime of 24 hours in a controlled environment. Charging time is less than 4 hours. The detector can withstand a 6 m (20 ft) fall. It is recommended to keep the detector in optimal conditions: -10°C to + 40°C (14°F to 104°F), 15% to 90% relative humidity in a non-condensing environment.

If you need to measure the air in a deep pit, it is still possible to use this device to test air quality before going down. In that case, you need a pump included in the kit and the appropriate length of tubing.

Please note the equipment must always be verified and tested before each use. This type of test is called a "bump test". To perform a bump test, use the (DETEC4GR) pressure gauge and the (DETEC4GG) gas cylinders included in the kit. Calibration by a specialized firm is required every 6 months.

Detector dimensions:
Length 4.4" x Width 3.0" x Height 1.31"
(Length 11.2 cm x Width 7.6 cm x Height 3.3 cm)
Detector weight: 224 g (7.9 oz)

For more information, consult the instructions manual available under the Downloads tab (English, French, Spanish).
