Ago-Sil, sold by square foot, abrasion resistant, highly malleable and somewhat dusty use.
search
  • Ago-Sil, sold by square foot, abrasion resistant, highly malleable and somewhat dusty use.

Ago-Sil, sold by square foot, abrasion resistant, highly malleable and somewhat dusty use.

AGFC034-1800
Made in Canada
$8.05
Density: 1800
Quantity

Return conditions:

No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

Minimum order of 75$ per type of material.

When placing an order, please indicate:
1. The curtain's final dimensions (width and height)
2. The placement of the grommets:
   - On top of the curtain only
          or
   - All around the curtain perimeter

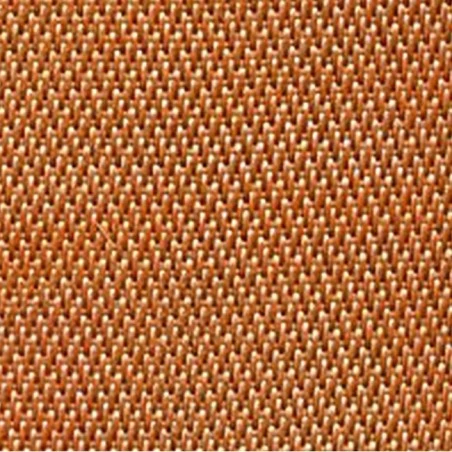

Ago-Sil is a highly texturized silica cloth made of a minimum 96 % amorphous silicon dioxide. A Special treatment reduces dusting and improves handling and abrasion resistance.

Ago-Sil has a melt temperature exceeding 3100F. It provides sustained protection against high heat conditions and is highly resistant to molten metal plash.

Ago-Sil has superior thermal insulating properties enhanced by a high moisture absorption capacity which adds to it insulation capabilities without degradation of properties.

It has a rapid heat dissipation factor and a very low thermal conductivity. Ago-Sil offers excellent electrical resistance. As well, it has an excellent resistance to and compatibility with most chemicals.

Ago-Sil is very flexible with excellent drapability and offers a wide versatility of use in industry with a service temperature to 2000 F. Application include drop curtains for hot work such as welding and burning, thermal and electrical insulation, stress relieving and curtains in front for furnace and oven openings.

A host of miscellaneous jobs as tray covers, pipe lagging, belting and sleeves, etc., can be handled by this high temperature cloth.

Blankets fabricated to any size with stitched seams and hems on all four sides, using high temperature aramid thread. Optional brass grommets can be installed on custom blankets if required.

Blankets can be ordered to any size. Specify height X width

AGFC034-1800

Data sheet

Type of product
Safety equipment
Main category
Industrial accessoiries
Sub category
Industrial curtains
Sub sub category
Materials for industrial curtains
Name of the product
Safety blankets
Product code
AGFC034
Sort by keywords
Amorphous silicon dioxide
Manufacturer
AGO Industries Inc
Country of origin
Canada
Choice of format
Available in 2 different densities 1800 and 3600
Recommended use temperature
2000º F / 1093.33°C
Features
Available with grommet on top or all around
Resistance
Highly resistant to molten metal plash and abrasion, also excellent resistance to and compatibility with most chemicals
Material1
Ago-Sil is a highly texturized silica cloth made of a minimum 96 % amorphous silicon dioxide
Material2
Brass grommets
Dimensions of the product
The dimensions of the product depend on the size selected by the customer.
Sold by
Per square foot
Color
Brown
Return conditions
No returnable
New

Download

California FR registration (EN)

California State Fire Marshall registered flame-resistant (FR) product. English only.

Download (68KB)

AWS welding screen specs (EN)

Welding screen specifications established by the American Weld Association (AWS). English only.

Download (60.63KB)
