Dentec Safety Specialist
Reusable roof anchors whit D-ring
FPA827
$21.10
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

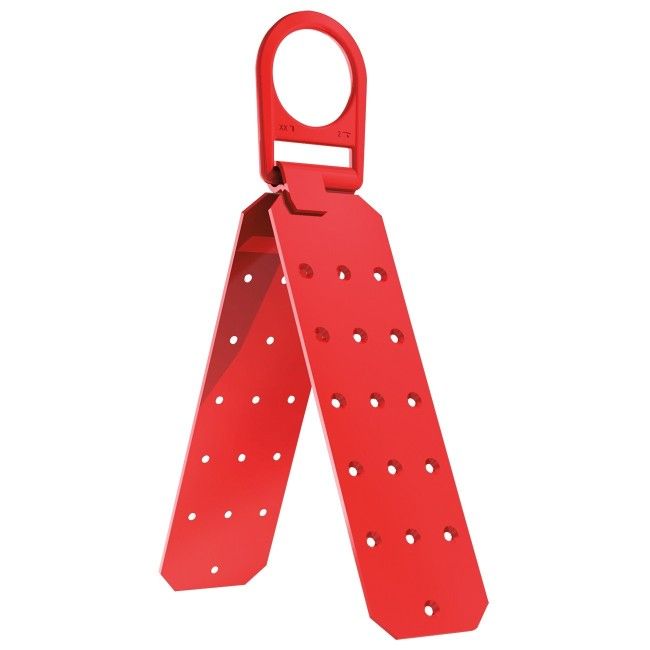

Peakworks brand reusable roof anchor bracket. The maximum weight of the worker that can use this anchor is 310 lb (141 kg), including clothing, tools, etc. Sold individually.
Peakworks manufacturer's code: V8229100, model: RB-9800. Conforms to CSA Z259.15 and ANSI Z359.18 standards. Designed to resist static forces of 5000 lb (22 KN).

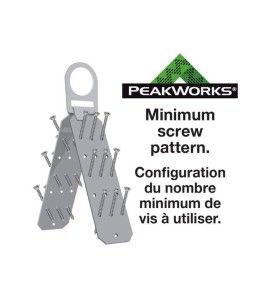

According to the manufacturer, this anchor must be installed on structural parts of the sloped roof, it can be put through the sheathing that is put over wood structural elements or on the sheet metal that covers the structural wood. It is recommended to use 3" #10 screws (not included), a minimum of 3 in the center row and 3 more in the vertical rows on each side. So 9 screws per side for a total of 18. Do not install too close to the end of the roof. At the end of the work, the anchor must be removed to be used again.
About the anchor point:
The anchor point should preferably be located above the level of the harness back ring and should be positioned vertically to the user. The worker should remain below the anchor point so that he/she remains within a perimeter of no more than a 45 degree angle.
It is important that the user be aware of the risks of a possible fall. Among other things, is there a sufficient distance below the worker that is free of obstacles? Are there emergency measures in place to quickly recover the worker? Can the anchor point withstand a force of 5000 lb? For more information, consult the manufacturer's manual.
Any equipment that is subject to a fall or impact must be taken out of service.
Suggestion:
To complete your fall protection you will find a range of harness, lanyards and self-retracting lanyards. Some products are suggested under the "accessories" tab at the bottom of this page.
Other equipment frequently used with this safety harness:
Safety glasses YA12E91001
Liberty TA14LR safety helmet and the essential TA14CS chin strap
EPTCONE28B Traffic Cones
Peakworks FPBAG storage bag
The FPL9901 Tool Strap
FPA827
Data sheet
- Type of product
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Anchorage & connectors
- Name of the product
- Roof anchor
- Product code
- FPA827
- Approved/Certified
- Complies with CSA Z259.15-17 and ANSI Z359.1-2007 standards
- Manufacturer
- Peakworks
- Country of origin
- China
- Reusable
- Reusable with careful inspection and proper installation
- Features
- Reusable anchor connector for sloped roof
- Characteristic adding safety
- Designed to withstand static forces of 5000 lbs (22 KN)
- Worker’s weight
- 310 lb / 140 Kg maximum
- Material
- Steel
- Washable
- Hand wash with warm water and soap
- Length (in/cm)
- 12 in / 30.48 cm
- Width (in/cm)
- 12 in / 30.48 cm
- Height (in/cm)
- 3 in / 7.6 cm
- Weight (lb/kg)
- 2 lb / 0.9 Kg
- Sold by
- Unit
- Color
- Red
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight supported is 310 lb / 141 kg, which includes the weight of tools and any other equipment carried by the worker
