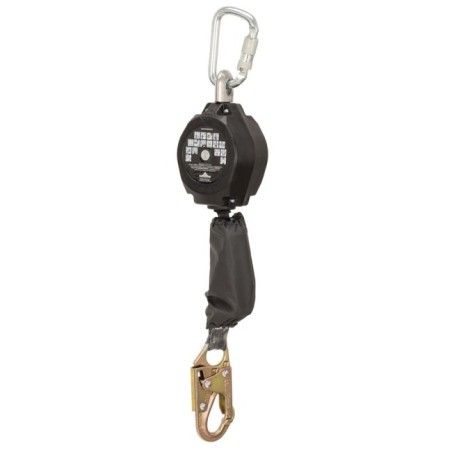

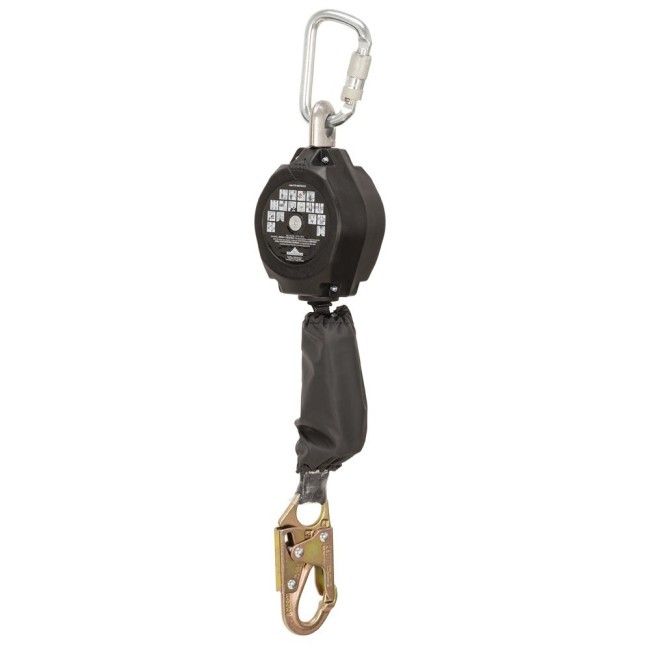

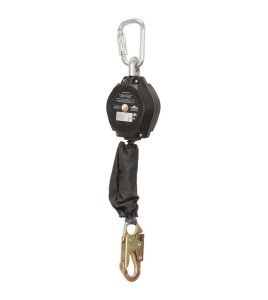

Peakworks Model SRL-80302-12LE, 12 ft single leg, Leading Edge Self-Retracting Lifelines, 1 std carabiner and Dyneema

Peakworks Personal Fall Restrictor or Self-Retracting Lanyard (SLR-LE) with external energy absorber. This model features enhancements to protect workers from sharp edges also known as Leading Edge (LE) applications. This protection is conditional to the conditions of use described in the user manual. The webbing is made of Dyneema®, a material known for its resistance to cuts.

Peakworks product code: V845722012LE, model # SRL-80302-12LE.

This product complies with ANSI Z359.14-2014 Class B, and CSA Z259.2.2-2017.

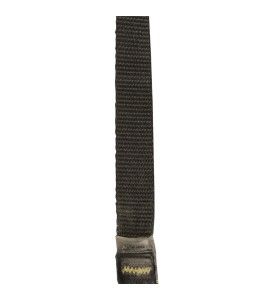

Webbing Dimensions:

Thickness: 0.07 in (1.75 mm)
Width: 0.8 in (20 mm)
Length: 12 ft (3.66 m)

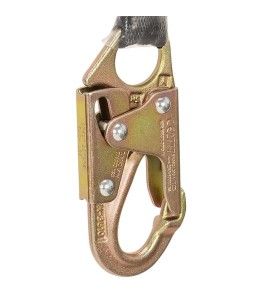

This type of equipment has the advantage of replacing regular lanyards, as their stopping distance is reduced. This self-retracting lifeline has two carabiners, a swivel carabiner with a standard 7/8" (22.22 mm) opening and a semi-automatic (rotating ring) carabiner with a ¾" (19 mm) opening. The carabiners are self-locking and unlock with a double action.

This personal fall limiter with vertical or horizontal anchorage can support a worker weighing up to 310 lb (136 kg), including clothing, tools and equipment.

During a fall, the energy absorber of the fall arrester can extend a maximum distance of 15 in (0.37 m) with a vertical anchor point and 57 in (1.44 m) for a horizontal anchor. These values represent (DD) the deployment value of the connecting device indicated by the free fall distance calculation diagram. Its braking mechanism combined with the energy absorber will limit the forces exerted on the falling worker. For a worker weighing of a maximum weight of 310 lb, the stopping forces will be 4.12 kN (928 lbf). Once the webbing is deployed, the webbing overload indicator will appear. It is possible to have it repaired by the manufacturer, however, for this type of model it is preferable to replace it.

The carabiners (hooks) are made of plastique and are capable of withstanding a force of 3600 lb (16 kN) without deforming.

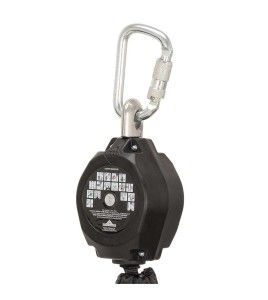

The housing is made of impact-resistant aluminum and corrosion resistant parts. The lightweight devices can be mounted on the worker's harness for greater freedom and range of motion. The housing is approved for use in horizontal or vertical applications. In addition, it has an integrated rotating swivel that prevents the strap from twisting. Its total weight is 13 lb (5.89 kg).

The self retracting lanyard has a certification label on the housing. In addition, an instructional label is affixed to the housing to increase understanding of the conditions of use.

Regarding the anchor point and free fall distance:
The anchor point should preferably be located above the level of the harness back D loop and should be positioned vertically to the user. The worker should remain below the anchor point so as to remain within a perimeter of no more than a 30°-degree angle.

It can also be used in a horizontal configuration, i.e. the anchor point can be lower than the back ring. To avoid a swaying effect causing injury, the range of lateral movement should be limited to within 59" (1.50 m) on either side of the centerline formed with the anchor point. The minimum setback required to install the anchor point shall be a minimum of 16" (40 cm) from the edge. In addition, if there are unprotected cutting edges, they must be secured. The edge radius must be greater than or equal to 0.010 in (0.25 mm). This is regularly found on rolled steel profiles, wood beams or on rounded paneling.

It is important that the user be aware of the risks of a possible fall. Among other things, is there a sufficient distance free of obstacles below the worker? Are there emergency measures to recover quickly? Can the anchor point withstand a force of 5000 lb? For more information, consult the manufacturer's manual.

Inspection:

The worker is responsible for performing a routine inspection before each use. During this routine inspection, the worker should observe any signs of deterioration, wear, malfunction or breakage. You must replace your equipment at the first sign of failure.

In addition, this retractable should be inspected by a qualified person other than the worker. The required frequency of these inspections varies by manufacturers. Some prescribe every 90 days, other every 180 days, or even annually.

Keep in mind that the more difficult the work and environmental conditions, the more often your equipment will need to be inspected. The recommended life span of a lanyard is 5 years. Some manufacturers are silent on the subject, but in practice, a retractable used regularly and neglected in terms of storage or maintenance will not have a long life. On average, their lifespan will not exceed 5 years.

Sylprotec offers an inspection service for lanyards and safety harnesses. For self-retracting lanyards, we offer this service through the manufacturer. However, due to their low cost, they are discarded in case of breakage or wear. Find out more by clicking on the Services tab, under the Sylprotec logo at the top of the page.

Suggestion:

To complete your fall protection you will find a range of harness and anchors. Some products are suggested under the "accessories" tab at the bottom of this page.

Other equipment frequently used with this Self Retractive Lanyard:

Safety glasses YA12E90801
Liberty TA14LR safety helmet and the essential TA14CS chin strap
EPTCONE28 Traffic Cones
Peakworks FPBAG storage bag
The FPL9903 Tool Strap

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.
