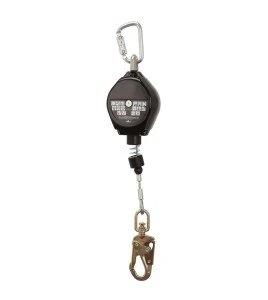

Peakworks Life line Model SRL-73302-20LE, 20 ft, Leading Edge Self-Retracting Lifelines, galvanized steel cable

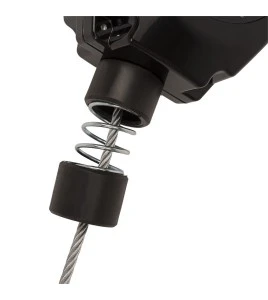

Peakwork's life line or Self-Retracting Lifeline (SLR-LE) with internal energy absorber and a length of 20 feet. This self-retracting lifeline LE (SLR-LE) is designed to protect a worker when working near an edge and a fall hazard exists. This model features enhancements to protect workers from sharp edges, also known as Leading Edge (LE) applications. This protection is subject to the conditions of use described in the user's manual. The cable is made of 0.22" (5.5 mm) galvanized steel.

Peakwork product code: V845633020LE, model # SRL-73302-20LE.

This product complies with ANSI Z359.14-2014 Class B, and CSA Z259.2.2-2017.

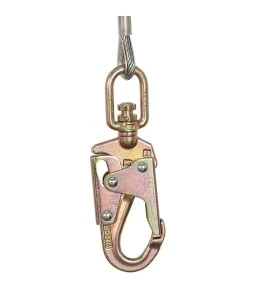

This self-retracting lifeline has two carabiners, a swivel carabiner with a standard 7/8" (22.22 mm) opening and a semi-automatic (rotating ring) carabiner with a ¾" (19 mm) opening. The carabiners are self-locking and unlock with a double action.

This personal fall limiter with a vertical or horizontal anchor can support a worker weighing up to 310 lb (136 kg), including clothing, tools and equipment.

During a fall, the fall distance varies depending on the anchor arrangement. The maximum stopping distance is 26" (0.67 m) with a vertical anchor point and 104" (3.64 m) for a horizontal anchor. These values represent (DD) the deployment value of the connection device indicated in the free fall distance calculation diagram. Its braking mechanism combined with the energy absorber will limit the forces exerted on the falling worker. For a worker weighing a maximum of 310 lb, the stopping forces will be 4.12 kN (928 lbf). Once the arrest mechanism is deployed, the lifeline overload indicator will appear. It is possible to have it repaired by the manufacturer, contact our customer service for a quote.

The carabiners (hooks) are made of steel and are capable of withstanding a force of 3600 lbs (16 kN) without deforming.

The housing is made of impact-resistant aluminum and corrosion resistant parts. Due to its weight, the housing is installed near the anchor point. The enclosure is approved for use in horizontal or vertical positions, hence the Class B certification. In addition, it is equipped with an integrated rotating swivel that prevents the strap from twisting. Its total weight is 8 lbs (3.63kg).

The self-retracting lifeline has a certification label on the housing.

Regarding the anchor point and free fall distance:
The anchor point should preferably be located above the level of the harness back rings and should be positioned vertically to the user. The worker should remain below the anchor point so as to remain within a perimeter of no more than a 30-degree angle.

It can also be used in a horizontal configuration, i.e. the anchor point can be lower than the back ring. To avoid a swaying effect causing injury, the range of lateral movement should be limited to within 59" (1.50 m) on either side of the centerline formed with the anchor point. The minimum setback required to install the anchor point shall be a minimum of 20" (50 cm) from the edge. In addition, if there are unprotected sharp edges, they shall be secured. The radius of the edge must be greater than or equal to 0.010 in (0.25 mm). This is regularly found on rolled steel profiles, wood beams or on rounded paneling.

It is important that the user be aware of the risks of a possible fall. Among other things, is there a sufficient distance free of obstacles below the worker? Are there emergency measures to recover quickly? Can the anchor point withstand a force of 5000 lb? For more information, consult the manufacturer's manual.

Inspection:
The worker is responsible for performing a routine inspection before each use. During this routine inspection, the worker should observe any signs of deterioration, wear, malfunction or breakage. You must replace your equipment at the first sign of failure.

In addition, this retractable should be inspected by a qualified person other than the worker. The required frequency of these inspections varies by manufacturers. Some prescribe every 90 days, other every 180 days, or even annually.

Keep in mind that the more difficult the work and environmental conditions, the more often your equipment will need to be inspected. Sylprotec offers an inspection service for safety lanyards and harnesses. For self-retracting lifelines, we offer this service through the manufacturer. You can find out more by consulting the  Services tab on our site or contact our customer service department for a quote.

Any equipment subject to a fall or impact must be taken out of service.

Maintenance:
For cleaning, use mild soap and lukewarm water (37°C). Do not use bleach or other abrasive or chemical products. If your retractable lanyard is too dirty or contaminated, it is time to replace it.

Air dry without excessive heat in a clean environment. You can use a very clean absorbent cloth or a fan. Avoid exposure to sunlight or other sources of contamination. The self-retracting lanyard should be fully retracted into the device when not in use.
