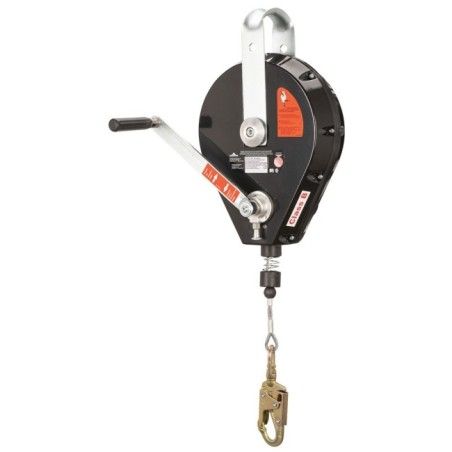

Peakworks Life line Model SRL-73303-96, 96 ft, with recovery Self-Retracting Lifelines, galvanized steel cable

Peakwork Self-Retracting Lifeline with Recovery/Rescue Crank (SLR-R) with internal energy absorber and a length of 96 feet (29.26 m). This lifeline is designed to be used as a fall arrest or recovery block. It is not designed to be used to position the worker during a task, to transport personnel, to lift goods or to move or lift materials. This protection is subject to the conditions of use described in the user's manual. The cable is made of 0.22 in (5.5 mm) galvanized steel.

Peakwork product code: V845643096, model # SRL-73303-96.

This product complies with ANSI Z359.14-2014, and CSA Z259.2.2-2017.

This self-retracting lifeline is equipped with a steel carabiner, which is a swivel carabiner with a standard 7/8" (22.22 mm) opening. The carabiner is self-locking and unlocks with a double action.

This personal fall limiter for a vertical anchor position can support a worker weighing up to 310 lb (136 kg), including clothing, tools and equipment.

The maximum stopping distance is 32" (0.80 m) with a vertical anchor point. These values represent (DD) the deployment value of the connecting device indicated in the free fall distance calculation diagram. Its centrifugal braking mechanism combined with the internal energy absorber will limit the forces exerted on the falling worker. For a worker weighing a maximum of 310 lb, the stopping forces will be 4.12 kN (928 lbf). It is possible to have it repaired by the manufacturer, contact our customer service for a quote.

The carabiner (hook) is made of steel and is capable of supporting a force of 3600 lb (16 kN) without deforming.

The housing is made of impact-resistant aluminum and corrosion resistant parts. Due to its weight, the enclosure must be installed on a tripod (FPLRKT) using the bracket (FPLRS) . The housing is approved exclusively for use in the vertical position. In addition, it has an integrated rotating swivel that prevents the strap from twisting.

Its total weight is undisclosed by the manufacturer.

The self-retracting lifeline has a certification label on the housing.

Regarding the anchor point and free fall distance:
The anchor point should be located on one of the tripod poles (FPLRKT) equipped with the lifeline bracket (FPLRS) and connected to the back ring of the harness via the tripod pulley and should be positioned vertically to the user. The worker should remain below the anchor point so as to remain within a perimeter of no more than a 30-degree angle. In addition, if there are unprotected cutting edges, they should be secured.

It is important that the user is aware of the risks of a possible fall. Among other things, is there a sufficient distance free of obstacles below the worker? Are there emergency measures in place to quickly recover the worker? Can the anchor point withstand a force of 5000 lb? For more information, consult the manufacturer's manual.

Inspection:

The worker is responsible for performing a routine inspection before each use. During this routine inspection, the worker should observe any signs of deterioration, wear, malfunction or breakage. You must replace your equipment at the first sign of failure.

In addition, this retractable should be inspected by a qualified person other than the worker. The required frequency of these inspections varies by manufacturers. Some prescribe every 90 days, other every 180 days, or even annually.

Keep in mind that the more difficult the work and environmental conditions, the more often your equipment will need to be inspected. Sylprotec offers an inspection service for safety lanyards and harnesses. For self-retracting lifelines, we offer this service through the manufacturer. You can find out more by consulting the  Services tab on our site or contact our customer service department for a quote.

Any equipment subject to a fall or impact must be taken out of service.

Maintenance:
For cleaning, use mild soap and lukewarm water (37°C). Do not use bleach or other abrasive or chemical products. If your retractable lanyard is too dirty or contaminated, it is time to replace it.

Air dry without excessive heat in a clean environment. You can use a very clean absorbent cloth or a fan. Avoid exposure to sunlight or other sources of contamination. The self-retracting lanyard should be fully retracted into the device when not in use.

Suggestion:
To complete your fall protection you will find a range of harness and anchors. Some products are suggested under the "accessories" tab at the bottom of this page.
