Peakworks

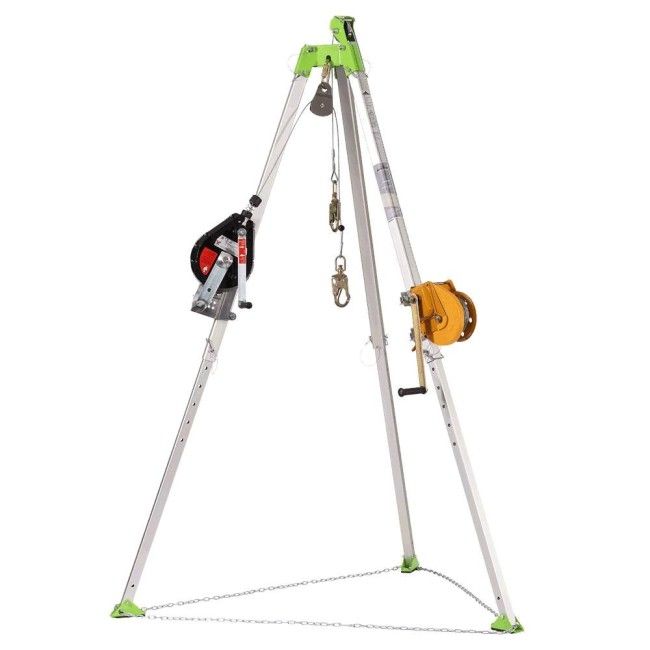

Confined Space Kit: Tripod, 3-Way 60' (18 M) WINCH, 65'
FPLRK3
$5,963.25
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Product # V85026 | Model # CSK3-60
• Lightweight and portable, so you can take it with you from job to job, saving you time and money
• Offers easy single-person setup
• The PeakWorks series aluminum tripod features adjustable/locking legs, so you can find just the right fit for your applications
• Non-slip rubber safety feet on all sides prevent the unit from moving

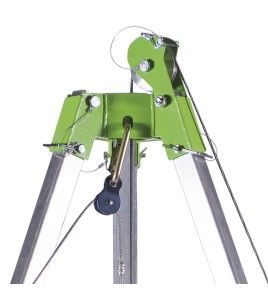

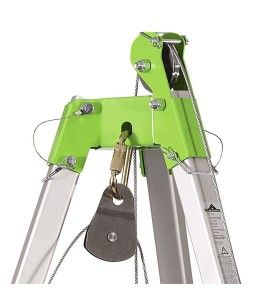

• Features a safety chain and 2 attachment points on the steel head, for extra safety and security
• Available in 7' (2 m)
• SRL mounting fixture installed prior to shipping
• V84537065 (MW-65G) winch using back plate and 4 bolts (carabiner & split pulley included)
• Meets or exceeds CSA and OSHA requirements for confined space rescue
• 4:1 mechanical advantage makes rescue quick and easy, with an average retrieval speed of 25' (7.6 m) per minute
• Corrosion-resistant stainless steel and aluminum components

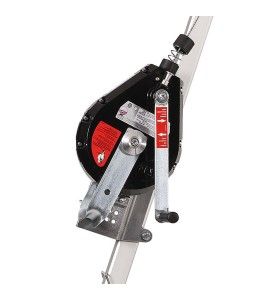

• V845534060 (SRL-53303-60) available with galvanized wire rope, 60' (18 m) in length

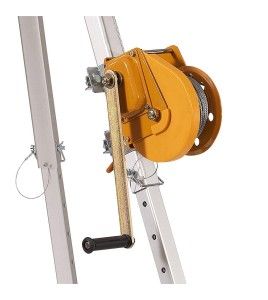

• V84537065 (MW-65G) man/material winch with galvanized wire rope, 65' (19.8 m) in length
• Meets OSHA, CE, ANSI A10.14, and CSA Z359.1 and Z259.2.2 Type 3 standards
• SRL & winch capacity: 151 kg (310 lb) combined weight of person, tools, clothing, etc.
• Operating Temperature: -35º C to +35º C
• Offers easy single-person setup
• The PeakWorks series aluminum tripod features adjustable/locking legs, so you can find just the right fit for your applications
• Non-slip rubber safety feet on all sides prevent the unit from moving
• Features a safety chain and 2 attachment points on the steel head, for extra safety and security
• Available in 7' (2 m)
• SRL mounting fixture installed prior to shipping
• V84537065 (MW-65G) winch using back plate and 4 bolts (carabiner & split pulley included)
• Meets or exceeds CSA and OSHA requirements for confined space rescue
• 4:1 mechanical advantage makes rescue quick and easy, with an average retrieval speed of 25' (7.6 m) per minute
• Corrosion-resistant stainless steel and aluminum components
• V845534060 (SRL-53303-60) available with galvanized wire rope, 60' (18 m) in length
• V84537065 (MW-65G) man/material winch with galvanized wire rope, 65' (19.8 m) in length
• Meets OSHA, CE, ANSI A10.14, and CSA Z359.1 and Z259.2.2 Type 3 standards
• SRL & winch capacity: 151 kg (310 lb) combined weight of person, tools, clothing, etc.
• Operating Temperature: -35º C to +35º C
FPLRK3
Data sheet
- Type of product
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Tripod & lifelines for confined spaces
- Name of the product
- 3-way Confined Space Kit - Tripod.
- Product code
- FPLRK3
- Approved/Certified
- OSHA, CE, ANSI A10.14, ainsi que CSA Z359.1 et Z259.2.2 Type 3
- Manufacturer
- Peakworks
- Format
- 65 ft.(19.8 m)
- Features
- Mechanical ratio of 4 to 1, for easier and faster rescue, and an average recovery speed of 25 ft (7.6 m) per minute
- Comfort features
- Lightweight and portable and easy to install by one person
- Includes
- Equipped with a safety chain and 2 anchor points on the steel head to limit risks and ensure greater safety
- Includes 2
- With back plate and 4 bolts (carabiner and driving pulley included)
- Operating temperature
- -31° F to 95° F / - 35°C to + 35°C
- Material1
- Stainless steel
- Material2
- Aluminum
- Material3
- Rubber
- Length (in/cm)
- 72 in / 182.88 cm
- Width (in/cm)
- 12 in / 30.48 cm
- Height (in/cm)
- 12 in / 30.4 cm
- Weight (lb/kg)
- 60 lb / 27.21 Kg
- Availability
- Available in 7 ft (2 m)
- Sold by
- Unit
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight supported is 310 lb / 141 kg, which includes the weight of tools and any other equipment carried by the worker
